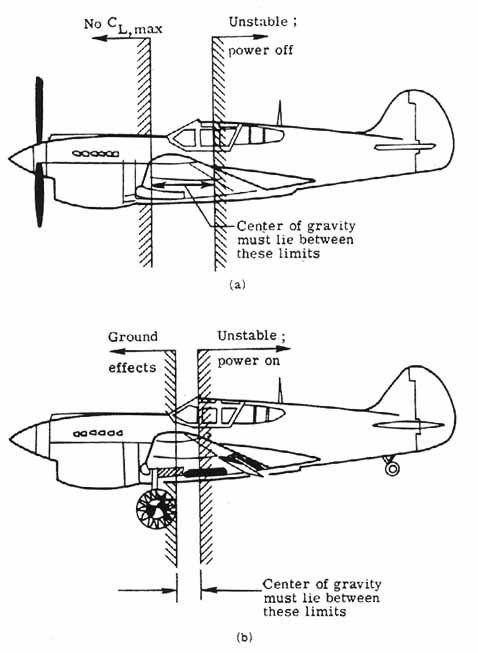

Usable center-of-gravity range. With power off, the usable center-of-gravity range is relatively large (figure a). Additional factors, however, reduce the usable center-of-gravity range. These include engine-on thrust effects and ground effects (including landing gear, flaps, and other considerations) as shown in figure (b).

Credits - NASA
